Raysince Roll-over Car Wash Machine for Car wash business
Technical Specification
Model : RM-535
|
Technical Specification |
|
|
Overall Size (Mm) |
2450*3700*2900 (L*W*H ) |
|
Pump Power |
30.5 KW |
|
Blower Motor Power |
5.5*2KW |
|
Chassis Walking Motor |
0.18kW*2 |
|
Top Brush Rotary Motor |
0.75kW*1 |
|
Top Brush Lifting Motor |
0.75kW*1 |
|
Side Brush Rotating Motor |
0.75kW*2 |
|
Side Brush Opening And Closing Motor |
0.18kW*2 |
|
Dress Brush Rotating Motor |
0.37kW*2 |
|
Top Blower Lifting Motor |
0.75kW*1 |
|
Side Blower Motor |
5.5kW*2 |
|
Total Power Of The Blower |
22kW |
|
Machine Total Weight |
850 KGS |
|
Washing Process |
|
|
High-pressure Water Washing |
Water Pressure 120 KGS with Masten Pump |
|
Shampoo Spraying |
Automatic proportioning system |
|
Micromolecule Wax Coating |
Automatic proportioning system |
|
Installation Rerequirement |
|
|
Water Consumption |
110-150L per vehicle |
|
Electricity Consumption |
0.7-1.5kwh per vehicle |
|
Site Installation Size (mm) |
10000*4000*3300 |
|
Power Supply Requirement |
3Phase/220V 60Hz |
|
Air Supply Requirement |
0.6~0.8 Mpa |
Details Display
Dynamic Wash
High-pressure water pre-rinsing removes large particles of sediment before contact, reducing the risk of scratches.

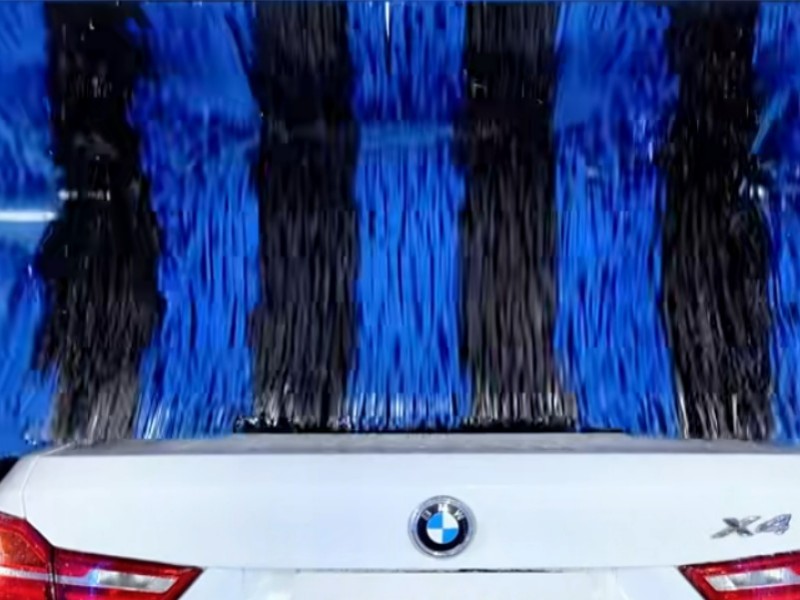

Top Brush Contour-Following Cleaning
RM-535 features a contour-following top brush that adapts to each vehicle’s shape for thorough coverage and effective dirt removal.

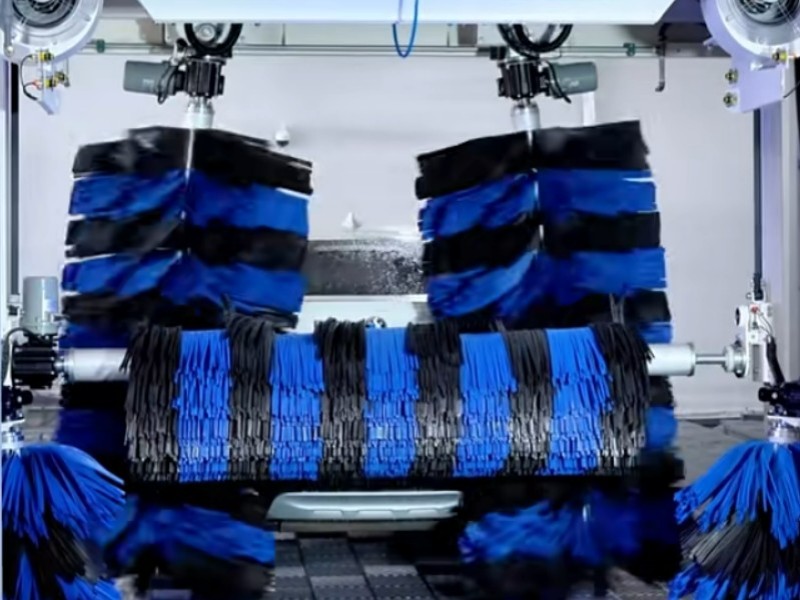

Angles Side Brushes
Side brushes tilt at an angle to match the vehicles contours, ensuring optimal contact and delivering a more effective clean for superior results.

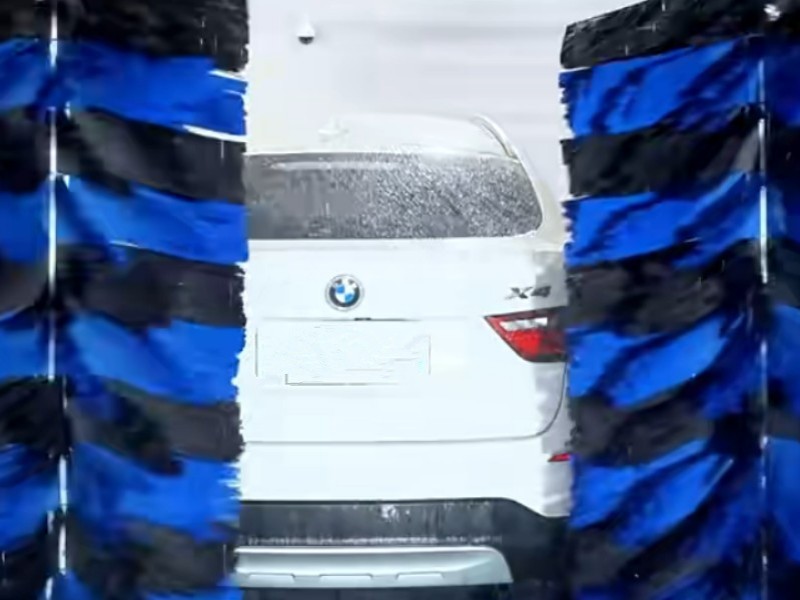

Crossing Centerline Cleaning
Side brushes cross the center line to effectively clean the front and rear end of the vehicle, ensuring through coverage of central areas for optimal results.
Rocker Panel Brushes
Specialized rocker panel brushes ensure thorough cleaning of the lower sides of vehicles.

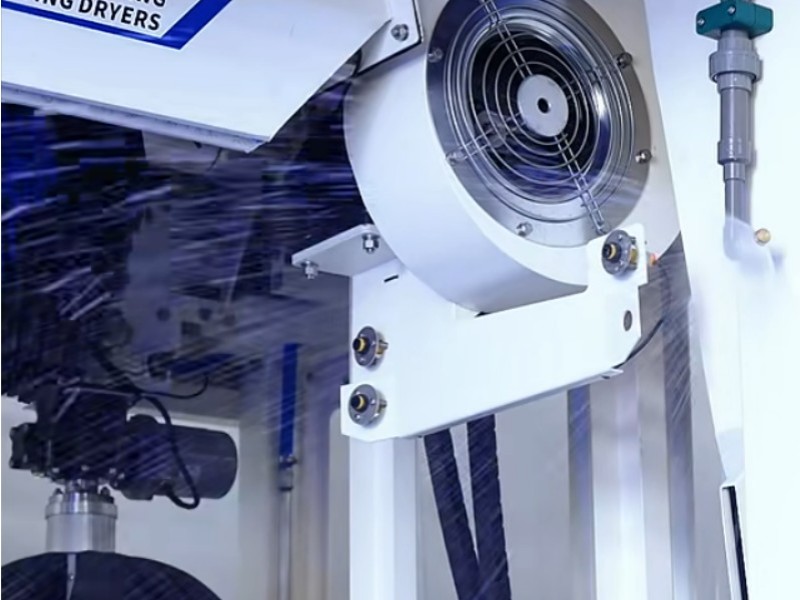

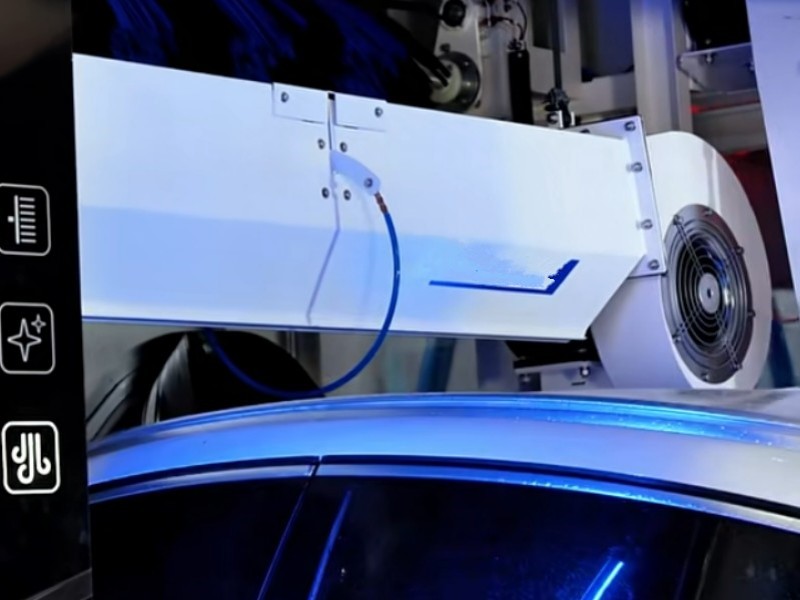

Powerful Top Air Drying System
The fixed blowers adjusts its angle according to the vehicle's outline and quickly dries the remaining water on the vehicle body.
