BM-400
Technical Specification
|
Technical Specification |
|
|
Overall Size (mm) |
2500*4500*5500 |
|
Total Power |
10 KW |
|
NO. of Brushes |
3 Brushes |
|
PLC System |
Taiwan Delta PLC |
|
Sensors |
OMRON, BANNER |
|
Machine Total Weight |
4000 KGS |
|
Washing Process |
|
|
Clean Water Sprinkling |
Washing along with brushes |
|
Shampoo Spraying |
Automatic proportioning system |
|
Long Vertical Brush |
To wash front,rear and both side parts |
|
Horizontal Brush |
To wash top parts |
|
Installation Rerequirement |
|
|
Water Consumption |
150-200L per vehicle |
|
Electricity Consumption |
0.5kw per vehicle |
|
Site Installation Size (mm) |
18000*6500*5700 |
|
Power Supply Requirement |
3Phase/380V |
|
Air Supply Requirement |
0.25m³/min, 0.8 Mpa (2.2KW) |
| Technical Specification | ||||||||
| Overall Size (mm) | 3100 / 4200*1300*1600 | |||||||
| Full Charge Washing Capacity | 60 units | |||||||
| Full Water Washing Capacity | 10 units | |||||||
| Water Tank Capacity | 700 L | |||||||
| Battery Capacity | 48V 65Ah | |||||||
| Battery Type | BYD Lithium Battery | |||||||
| Machine Configuration | ||||||||
| Brush Motor | 1.2 KW Intelligent motor | |||||||
| Runing Motor | 1.2 KW Intelligent motor | |||||||
| Water Pump | Delixi Stainless Pump | |||||||
| Steering System | Intelligent forklift steering system | |||||||
| Rotary System | Japanese bearing | |||||||
| Brush Material | Alloy tube+Imported foam brush | |||||||
| Water Tank Material | Stainless tank | |||||||
| Four Wheels Material | Nylon wheel | |||||||
| Alarming Light | Including | |||||||
Details Display

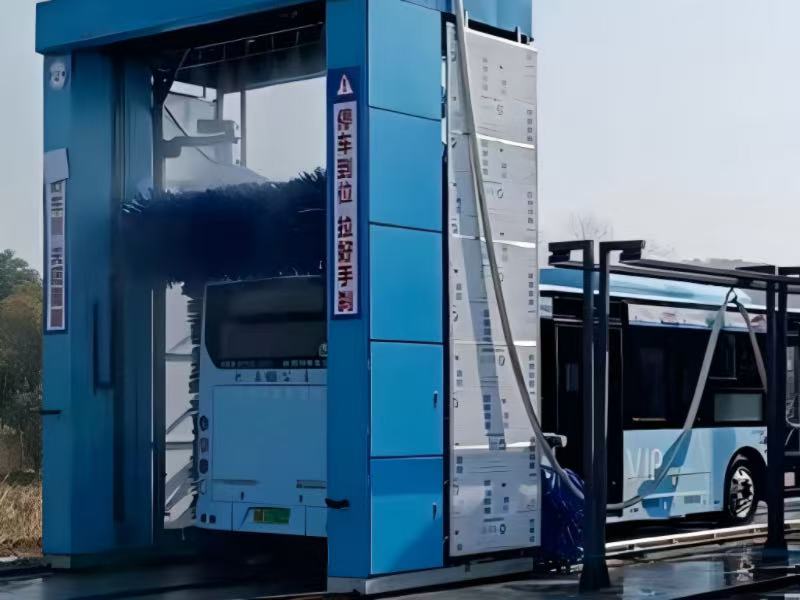

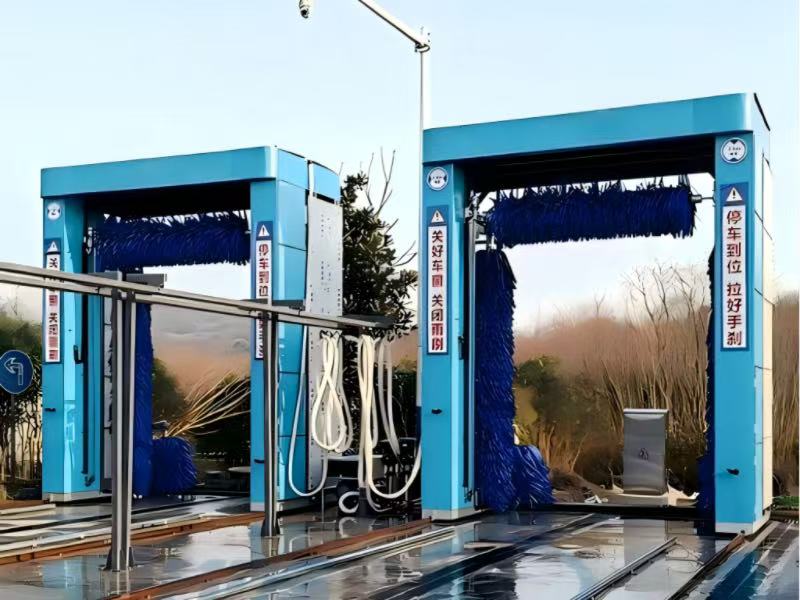

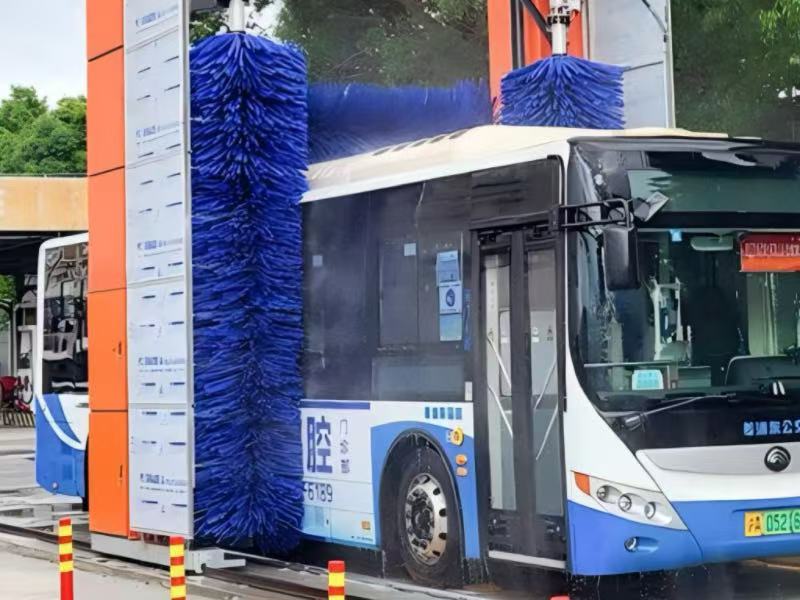

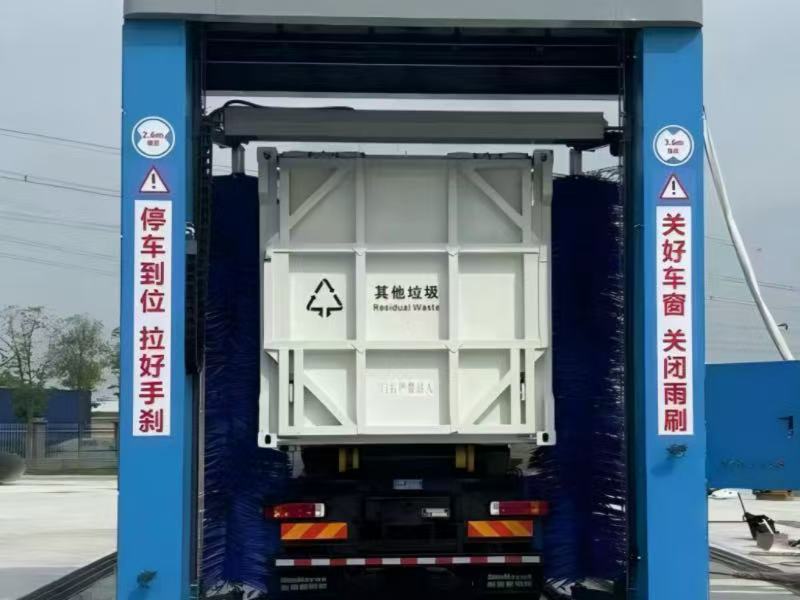

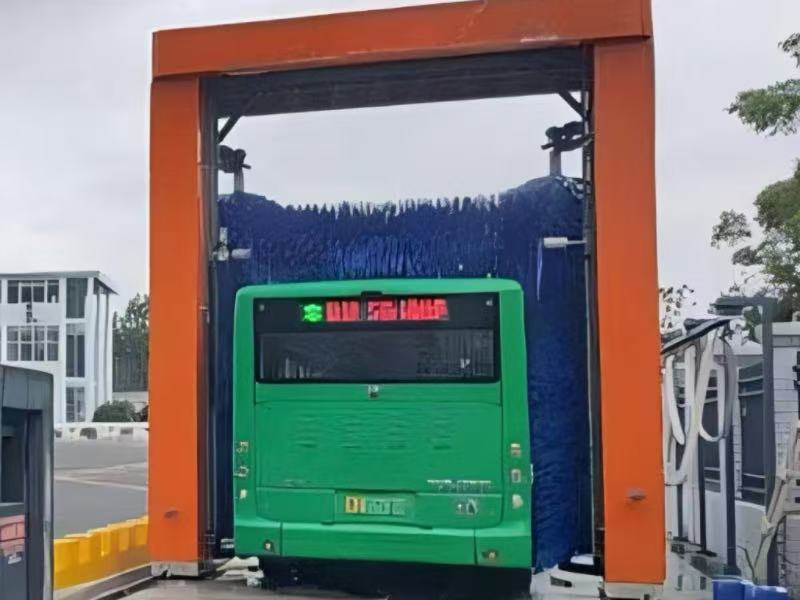

High-Efficiency All-Round Cleaning
Multi-directional rotating brushes combined with high-pressure water jets ensure thorough cleaning of buses, coaches and large vehicles, covering the roof, sides, front and rear without blind spots, achieving spotless results in 1.5-2 minutes per vehicle.

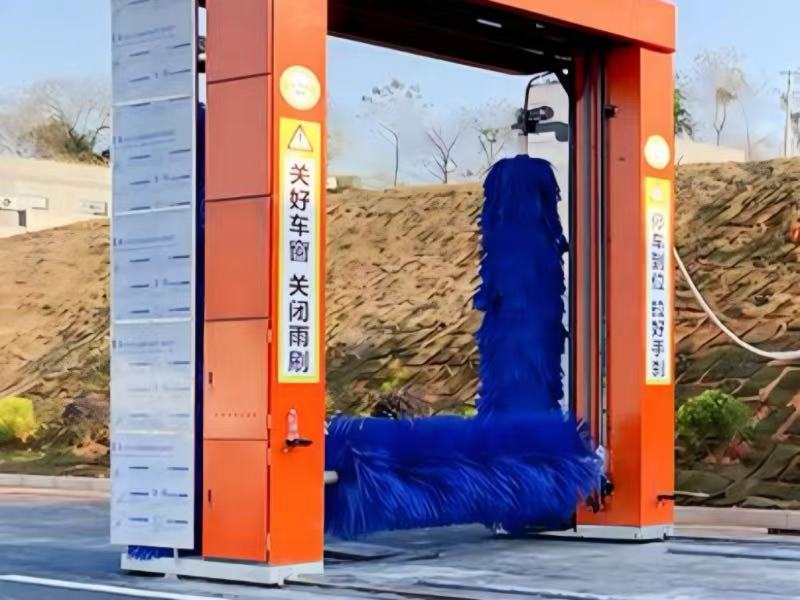

Gentle Yet Durable Brush System
Equipped with high-grade soft PVA/AB brushes, which are wear-resistant, non-abrasive to paint, and can withstand over 300,000 washing cycles, ensuring long service life and low maintenance costs.
Intelligent PLC Control & Auto-Sensing
Adopts imported PLC system with touchscreen operation. Infrared sensors automatically detect vehicle contours, adjusting brush positions dynamically to avoid side mirrors and protrusions, with multiple safety protection mechanisms.
Space-Saving & Flexible Installation
The reciprocating "car stationary, machine moving" design eliminates the need for long tunnels, with a compact footprint ideal for retrofitting old bus depots and limited-space sites.
Energy-Saving & Eco-Friendly Operation
Supports optional water recycling systems, reducing water consumption by up to 90%. Variable frequency drive and low-noise design ensure energy efficiency and meet environmental standards.
Low Maintenance & Long Service Life
The frame is made of anti-corrosion stainless steel/galvanized steel, with modular components for easy disassembly and replacement. Core parts use international brands for stable performance and minimal downtime.
