Model : TF-210
|
Technical Specification |
|
|
Overall Size (mm) |
7000*3500*3000 (L*W*H ) |
|
Pump Power |
15 KW, Brand: Germany Masten |
|
Blower Motor Power |
4*4KW |
|
PLC System |
Taiwan Delta PLC |
|
Sensors |
OMRON, B+F |
|
Machine Total Weight |
850 KGS |
|
Washing Process |
|
|
Chassis & Wheels Wash |
Fault self-check and alarm system |
|
Non-wipe Liquid Spraying |
Electronic intelligent collision prevention system |
|
High-pressure Water Washing |
Water Pressure 120 KGS with Masten Pump |
|
Shampoo Spraying |
Automatic proportioning system |
|
Micromolecule Wax Coating |
Automatic proportioning system |
|
3D Blower Drying |
With 4*4KW Blower Motor |
|
Installation Rerequirement |
|
|
Water Consumption |
150-200L per vehicle |
|
Electricity Consumption |
0.7kw per vehicle |
|
Site Installation Size (mm) |
7000*4000*3500 |
|
Power Supply Requirement |
3Phase/380V |
|
Air Supply Requirement |
0.25m³/min, 0.8 Mpa (2.2KW) |
Intelligent Vehicle Guidance
Automated position detection, anti-collision, and parking guidance for safe, precise alignment.

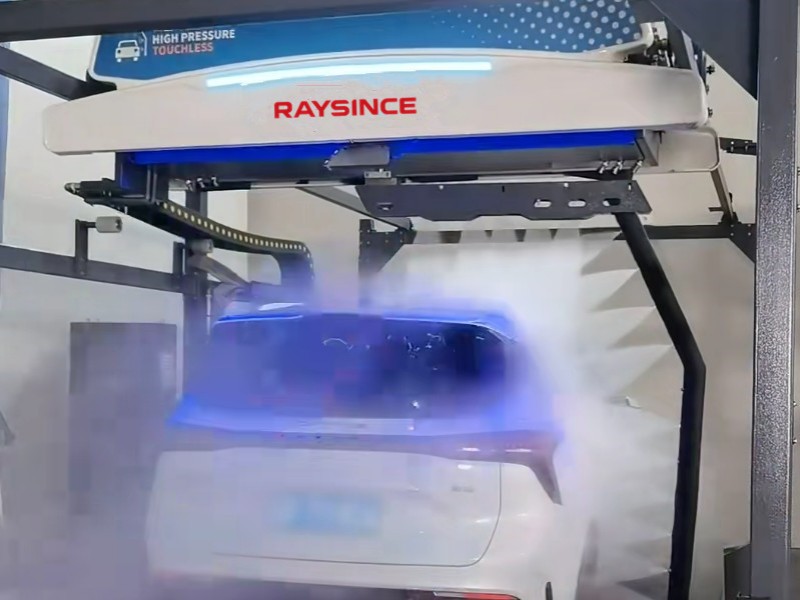

Triple-Action Touchless Cleaning
High-pressure pre-rinse, swaying, and rotating washes for a thorough, touch-free clean and a 360º rotating high-pressure spray ensures complete coverage.
Automatic Chemical Mixing System
Auto-dosing pump system applies presoak, foam, and wax for a perfer, spot-free clean.

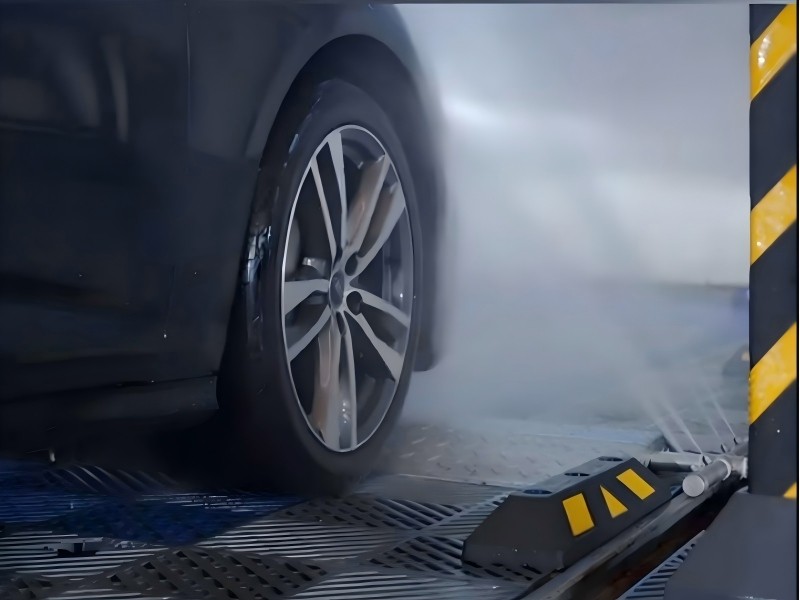

Undercarriage and Rocker Wash
This function to blast away grime from the chassis and lower body for a thorough clean.
Powerful Top Air Drying System
Four fixed blowers deliver a powerful, forced air dry for a spot-free finish.

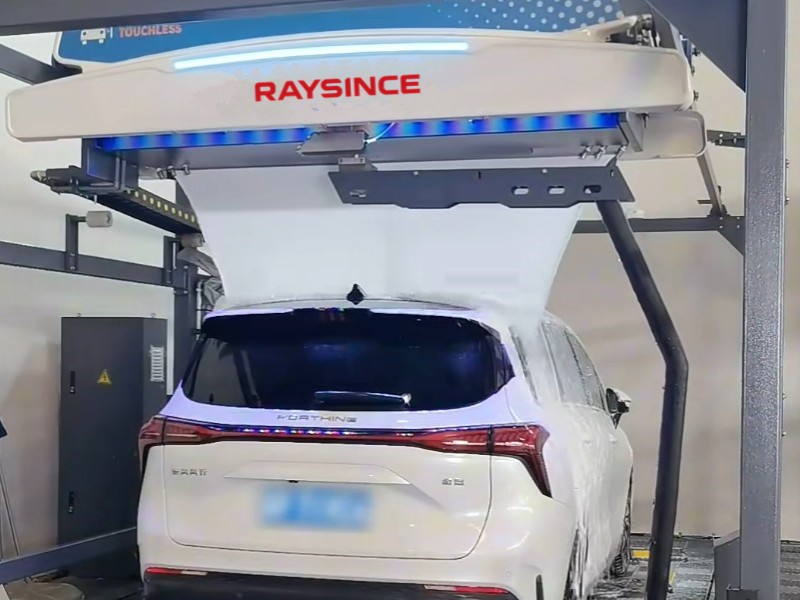

Optional Foam Curtain
Choose the foam curtain option for a dramatic, thick foam coverage that customers love.
